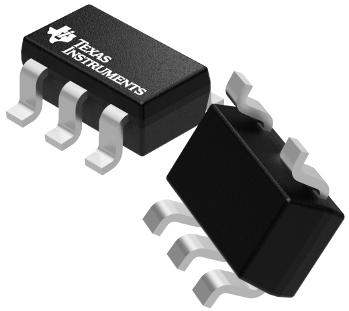

Supervisory Circuits LP3470IM5X-4.00
Texas Instruments
LP3470IM5X-4.00
--
Power Management
Supervisory Circuits
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | Voltage Monitor |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 5 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 5 |
| Part Status | NRND |
| Manual Reset | No |
| Output Driver | Active Low/Open Drain |
| Package Width | 1.75(Max) |
| Package Height | 1.1 |
| Package Length | 3.05(Max) |
| Watchdog Timer | No |
| Supplier Package | SOT-23 |
| Process Technology | CMOS |
| Chip Enable Signals | No |
| Power Fail Detection | No |
| Monitored Voltage (V) | 0.5 to 5.5 |
| Number of Supervisors | 1 |
| Standard Package Name | SOT |
| SVHC Exceeds Threshold | Yes |
| Battery Backup Switching | No |
| Maximum Supply Current (uA) | 16(Typ) |
| Maximum Power Dissipation (mW) | 300 |
| Maximum Reset Active Time (ms) | 2(Typ) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Reset Threshold Voltage (V) | 4.04 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Reset Threshold Voltage (V) | 3.96 |
| Typical Reset Threshold Voltage (V) | 4 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 0.5 |
| Description |
