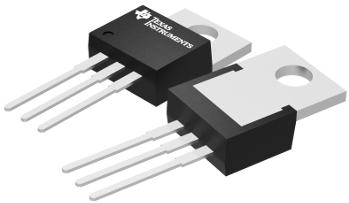

Linear Regulators LM2940T-8.0
Texas Instruments
LM2940T-8.0
--
Power Management
Linear Regulators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| Type | LDO |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| Polarity | Positive |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 3 |
| Part Status | NRND |
| Accuracy (%) | ±2 |
| Package Width | 4.7(Max) |
| Package Height | 8.89(Max) |
| Package Length | 10.16 |
| Line Regulation | 80mV |
| Load Regulation | 80mV |
| Junction to Case | 16.1°C/W |
| Special Features | Reverse Battery Protection|Current Limit|Short Circuit Protection|Shutdown|Thermal Protection |
| Supplier Package | TO-220 |
| Number of Outputs | 1 |
| Output Voltage (V) | 8 |
| Junction to Ambient | 23.3°C/W |
| Standard Package Name | TO-220 |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 26 |
| Minimum Input Voltage (V) | 9.4 |
| Maximum Output Current (A) | 1(Min) |
| Maximum Quiescent Current (mA) | 15 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Dropout Voltage @ Current (V) | 0.8@1A|0.15@100mA |
| Description |
