76825-0004
76825-0004

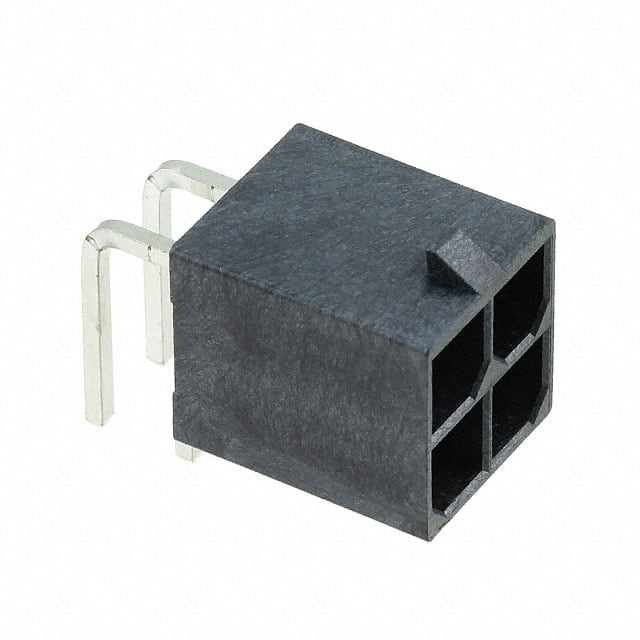

Power Connector 76825-0004
Molex
76825-0004
--
Connectors
Power Connector
76825-0004.pdf
Specification
Product AttributeAttribute Value
TypePower
Pitch5.7 mm
Series76825
ProductHeaders
PackagingTray
TradenameMega-Fit
ApplicationPower, Wire-to-Board
Row Spacing5.7 mm
Unit Weight0.100037 oz
Contact Type-
Housing ColorBlack
Contact GenderPin (Male)
Current Rating23 A
Housing Gender-
Mounting AngleRight Angle
Mounting StyleThrough Hole
Number of Rows2 Row
Part # Aliases768250004 0768250004
Voltage Rating600 V
Contact PlatingNickel
Contact MaterialTin
Housing MaterialLiquid Crystal Polymer (LCP)
Termination StyleSolder Pin
Flammability RatingUL 94 V-0
Number of Positions4 Position
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity1250
Description
Rectangular Power Connector,
