503148-1690
503148-1690

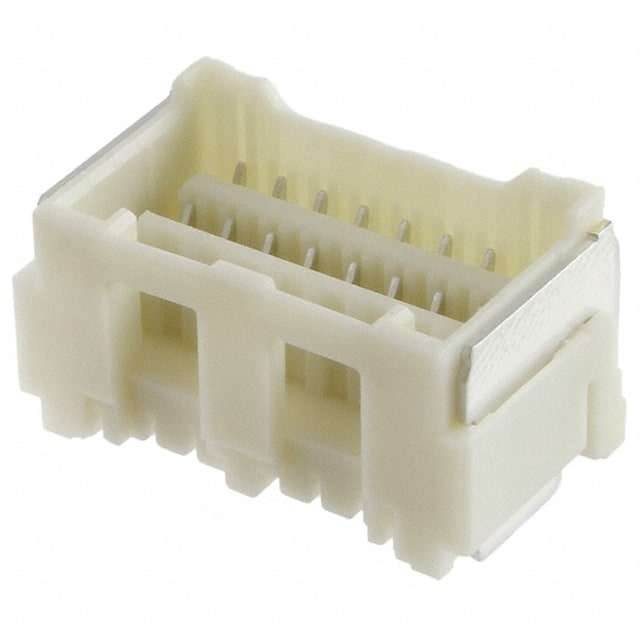

Power Connector 503148-1690
Molex
503148-1690
--
Connectors
Power Connector
503148-1690.pdf
Specification
Product AttributeAttribute Value
TypeReceptacle Housing
Pitch1.5 mm
Series503148
ProductHeaders
PackagingMouseReel
TradenameCLIK-Mate
Unit Weight0.050795 oz
Contact Type-
Accessory Type-
Contact GenderSocket (Female)
Current Rating1 A
Mounting AngleRight Angle
Mounting StyleSMD/SMT
Number of Rows2 Row
Voltage Rating100 V
Contact PlatingTin
Contact MaterialCopper Alloy
Housing MaterialThermoplastic
Termination StyleSolder
Number of Positions16 Position
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity550
Description
Rectangular Power Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle, ROHS COMPLIANT
