42820-2234
42820-2234

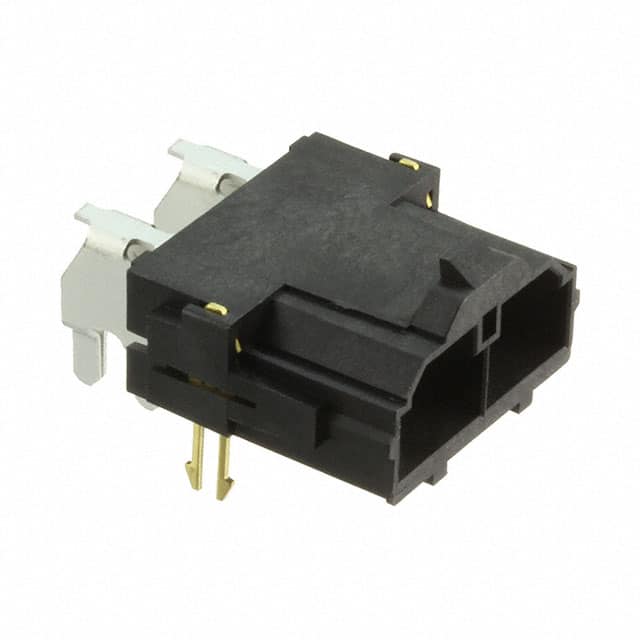

Power Connector 42820-2234
Molex
42820-2234
--
Connectors
Power Connector
42820-2234.pdf
Specification
Product AttributeAttribute Value
TypeShrouded
Pitch10 mm
Series42820
ProductHeaders
TradenameMini-Fit Sr.
ApplicationPower, Wire-to-Board
Unit Weight0.247165 oz
Contact GenderPin (Male)
Current Rating50 A
Mounting AngleRight Angle
Mounting StyleThrough Hole
Number of Rows1 Row
Part # Aliases428202234 0428202234
Voltage Rating600 V
Contact PlatingSilver
Contact MaterialTin
Termination StyleSolder Pin
Flammability RatingUL 94 V-0
Number of Positions2 Position
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity420
Description
Rectangular Power Connector,
