39-01-3169
39-01-3169

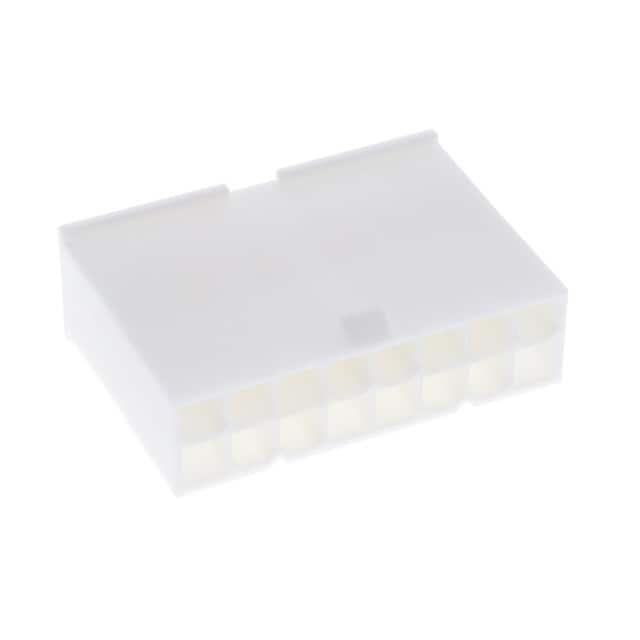

Power Connector 39-01-3169
Molex
39-01-3169
--
Connectors
Power Connector
39-01-3169.pdf
Specification
Product AttributeAttribute Value
TypePlug Housing
Pitch4.2 mm
Series5559
ProductWire Housings
TradenameMini-Fit Jr.
Unit Weight0.157463 oz
Contact TypePin
Housing ColorNatural
Contact Gender-
Current Rating13 A
Housing GenderPlug
Mounting Angle-
Mounting Style-
Number of Rows2 Row
Part # Aliases5559-16P1-210 0039013169
Voltage Rating600 V
Contact Plating-
Contact Material-
Housing MaterialPolyamide (PA)
Termination Style-
Flammability RatingUL 94 V-0
Number of Positions16 Position
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity1500
Description
Rectangular Power Connector, 16 Contact(s), Male, Plug
