26-01-3119
26-01-3119

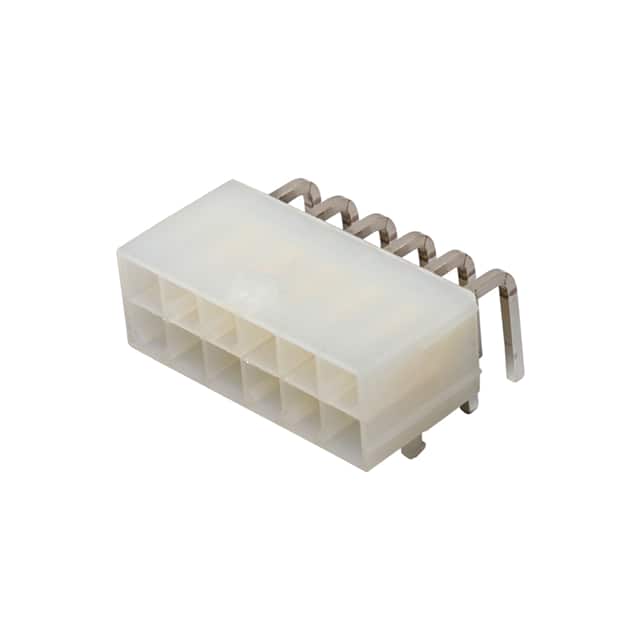

Power Connector 26-01-3119
Molex
26-01-3119
--
Connectors
Power Connector
26-01-3119.pdf
Specification
Product AttributeAttribute Value
Pitch4.2 mm
Series5569
ProductHeaders
TradenameMini-Fit Jr.
Unit Weight0.148680 oz
Housing ColorNatural
Current Rating13 A
Mounting AngleRight Angle
Mounting Style-
Number of Rows2 Row
Part # Aliases26013119 026013319 2601-3119 5569-12A2GS2-T
Voltage Rating600 V
Contact PlatingGold
Contact MaterialBrass
Housing MaterialNylon
Termination StyleSolder Pin
Flammability RatingUL 94 V-2
Number of Positions12 Position
Maximum Operating Temperature+ 105 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity1
Description
Power Connector,
Environmental Documents
Product Compliance
