172298-1206
172298-1206

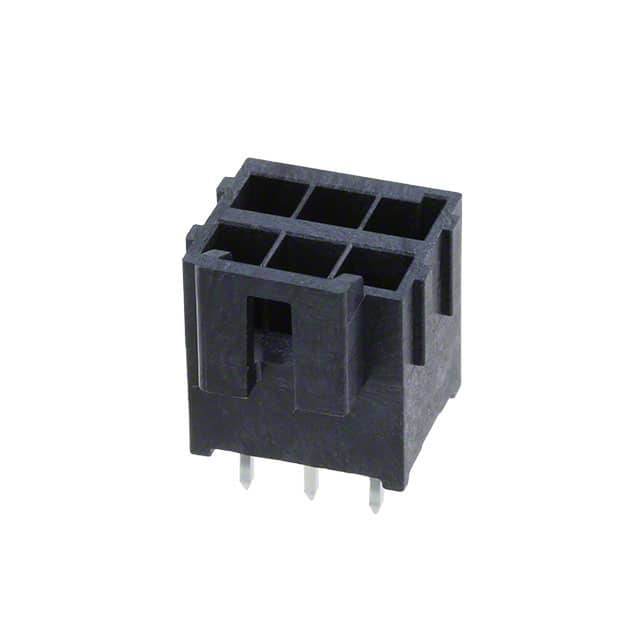

Power Connector 172298-1206
Molex
172298-1206
--
Connectors
Power Connector
172298-1206.pdf
Specification
Product AttributeAttribute Value
TypePower
Pitch3.5 mm
Series172298
ProductHeaders
PackagingTray
TradenameUltra-Fit
ApplicationPower, Wire-to-Board
Row Spacing4.6 mm
Unit Weight0.054816 oz
Contact Type-
Housing ColorBlack
Accessory Type-
Contact GenderPin (Male)
Current Rating11 A
Housing Gender-
Mounting AngleStraight
Mounting StyleKinked Pin
Number of Rows2 Row
Part # Aliases1722981206 01722981206
Voltage Rating400 VAC/DC
Contact PlatingGold
Contact MaterialTin
Housing MaterialLiquid Crystal Polymer (LCP)
Termination StyleSolder Pin
Flammability RatingUL 94 V-0
Number of Positions6 Position
Termination Post Length3.2 mm
Maximum Operating Temperature+ 120 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity125
Description
Rectangular Power Connector,
Environmental Documents
Product Compliance
