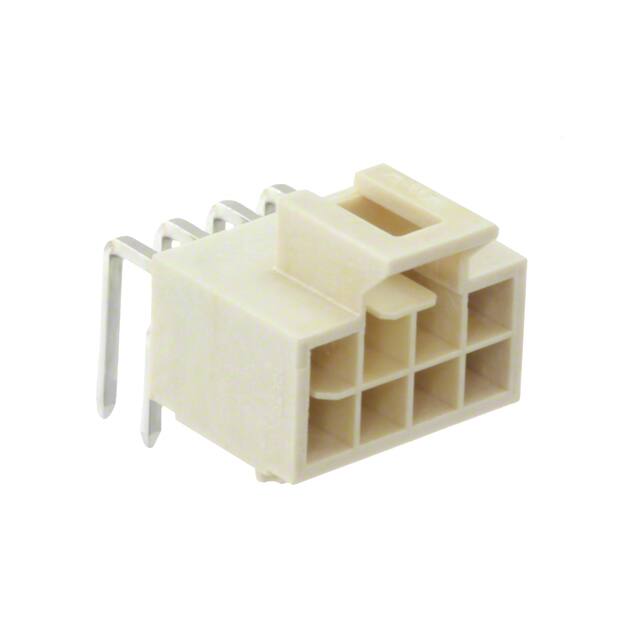

Specification
| Product Attribute | Attribute Value |
| Type | Shrouded |
| Pitch | 2.5 mm |
| Series | 105314 |
| Product | Headers |
| Tradename | Nano-Fit |
| Row Spacing | 2.5 mm |
| Unit Weight | 0.031747 oz |
| Housing Color | Natural |
| Contact Gender | Pin (Male) |
| Current Rating | 7.5 A |
| Housing Gender | - |
| Mounting Angle | Right Angle |
| Mounting Style | Through Hole |
| Number of Rows | 2 Row |
| Part # Aliases | 1053142108 01053142108 |
| Voltage Rating | 250 VAC |
| Contact Plating | Tin |
| Contact Material | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Style | Solder Pin |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 8 Position |
| Termination Post Length | 3.2 mm |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | - 40 C |
| Factory Pack Quantity: Factory Pack Quantity | 1872 |
| Description |
