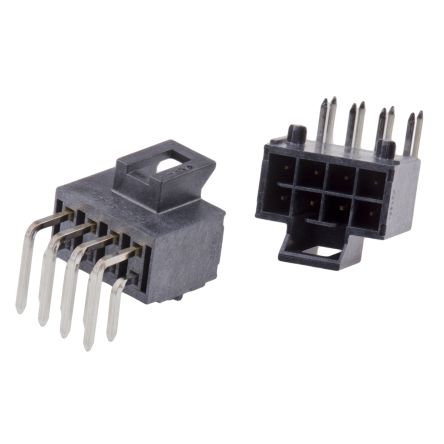

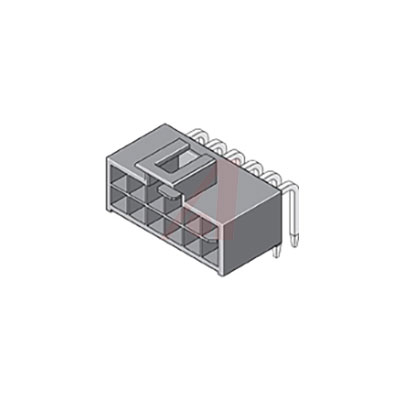

Power Connector 105314-1208
Molex
105314-1208
--
Connectors
Power Connector
105314-1208.pdf
Specification
Product AttributeAttribute Value
TypePower
Pitch2.5 mm
Series105314
ProductHeaders
PackagingTray
TradenameNano-Fit
ApplicationPower, Wire to Board
Row Spacing2.5 mm
Unit Weight0.031747 oz
Contact Type-
Housing ColorBlack
Contact GenderPin (Male)
Current Rating7.5 A
Housing Gender-
Mounting AngleRight Angle
Mounting StyleMounting Peg
Number of Rows2 Row
Part # Aliases1053141208 01053141208
Voltage Rating300 V
Contact PlatingGold
Contact MaterialTin
Housing MaterialLiquid Crystal Polymer (LCP)
Termination StyleSolder Pin
Flammability RatingUL 94 V-0
Number of Positions8 Position
Termination Post Length3.2 mm
Maximum Operating Temperature+ 115 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity: Factory Pack Quantity1
Description
Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal,
