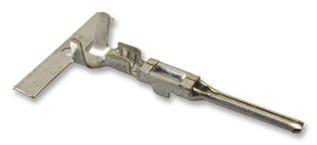

282404-1
282404-1
282404-1
282404-1
--
282404-1.pdf
Specification
Product AttributeAttribute Value
Other
Packaging :Tape & Reel (TR)
Applications :车用, Automotive
Product Lifecycle Status :Active
Customs
HTS Code :8536904000
ECCN Code :EAR99
Package
Case/Package :-
Physical
Material :Brass
Contact Material :Brass
Operating Temperature :-40℃ ~ 125℃
Technical
Gender :Male
Wire Gauge :20AWG ~ 22AWG
Current Rating :14 A
Voltage Rating :24 VDC
Contact Plating :Tin
Number of Contacts :1
Current Rating (Max) :14 A
Voltage Rating (Max) :24 VDC
Operating Temperature (Max) :125 ℃
Operating Temperature (Min) :-40 ℃
Maximum Contact Resistance (Max) :30 mΩ
Compliance
RoHS :RoHS Compliant
ELV Compliant :Compliant
Lead-Free Status :Lead Free
REACH SVHC Compliance :No SVHC
REACH SVHC Compliance Edition :2015/06/15
Dimensions
Size-Width :5.2 mm
Size-Height :4.7 mm
Size-Length :22.7 mm
Case/Package :-
Description

RS Components:
Contact,crimp,tab,MIC mini,28-20 awg


Digi-Key:
CONN TAB 20-22AWG CRIMP TIN


JLCShop:
282404-1


Arrow:
A solid mechanical connection is ideal for any cable connection, this 282404-1 connector contact manufactured from TE Connectivity will get the job don. It has a straight body orientation. This device has a maximum current rating of 14 A. This has a Connector Power connector. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 22.7 mm long, 4.7 mm tall and 5.2 mm deep. It uses the crimp termination method. This connector contact has a minimum operating temperature of -40 °C and a maximum of 125 °C.


Allied Electronics:
AMP SUPERSEAL 1.5 Crimp Tab Terminal; Male; Crimp; Tin Plating 28 to 20 AWG


Avnet:
Contact PIN Crimp ST Cable Mount Strip


Chip1Stop:
Contact PIN Crimp ST Cable Mount Reel Automotive


TME:
Contact; male; 0.35÷0.5mm2; 22÷20AWG; Superseal 1.5; tinned; tape


Verical:
Contact PIN Crimp ST Cable Mount Automotive T/R


Newark:
# AMP - TE CONNECTIVITY  282404-1  Contact, SUPERSEAL 1.5 Series, Pin, 22 AWG, 20 AWG, Crimp, Brass


Powell:
Superseal 1.5 Series


Online Components:
MINI MIC SRS TAB CONTACT


Electro Sonic:
MINI MIC SRS TAB CONT


Win Source:
CONN TAB 20-22AWG CRIMP TIN / Tab Contact Tin 20-22 AWG Crimp
