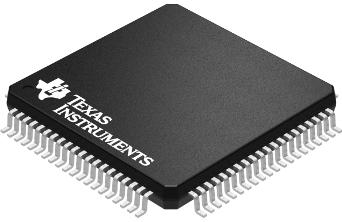

Universal Bus Exchanger SN74ABTH32316PN
Texas Instruments
SN74ABTH32316PN
--
Electronic Switches
Universal Bus Exchanger
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 80 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | 3-State |
| PCB changed | 80 |
| Part Status | Active |
| Logic Family | ABT |
| Configuration | 16 x 3:3 |
| Package Width | 12.2(Max) |
| Package Height | 1.45(Max) |
| Package Length | 12.2(Max) |
| Supplier Package | LQFP |
| Power Supply Type | Single |
| Process Technology | BiCMOS |
| Standard Package Name | QFP |
| Maximum Frequency (GHz) | 0.15(Min)@4.5V to 5.5V |
| Number of Inputs per Chip | 48 |
| Number of Outputs per Chip | 48 |
| Supplier Temperature Grade | Commercial |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 40000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 7.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 7.5@4.5V to 5.5V |
| Description |
