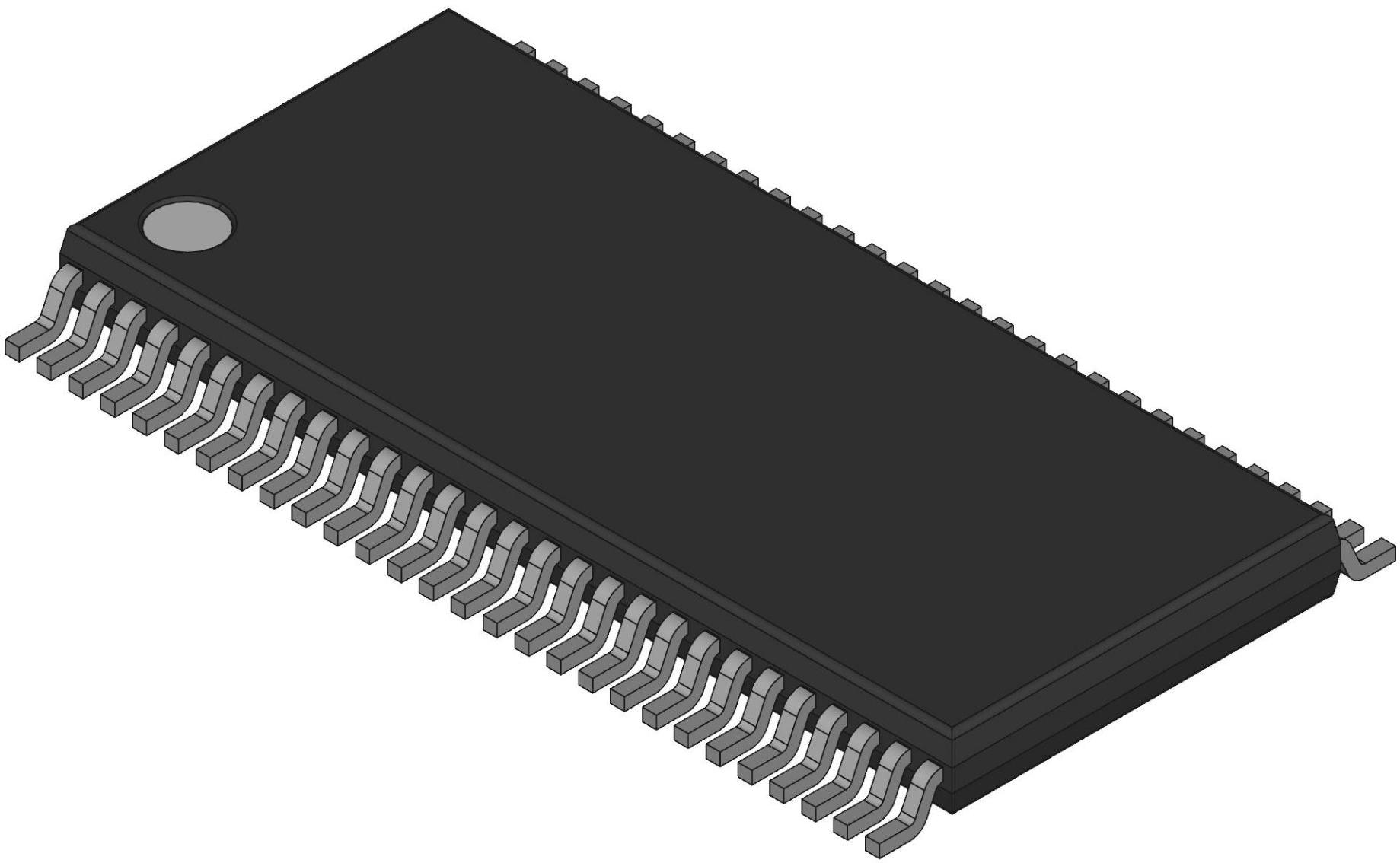

Universal Bus Exchanger PI74AVC+16268AE
Diodes Incorporated
PI74AVC+16268AE
--
Electronic Switches
Universal Bus Exchanger
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 56 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | 3-State |
| PCB changed | 56 |
| Part Status | Obsolete |
| Logic Family | AVC+ |
| Configuration | 12 x 2:1 |
| Package Width | 6.2(Max) |
| Package Height | 1.05(Max) |
| Package Length | 14.1(Max) |
| Supplier Package | TSSOP |
| Power Supply Type | Single |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Maximum Frequency (GHz) | 0.18(Min)@2.5V to 3.3V|0.15(Min)@1.8V |
| Number of Inputs per Chip | 12 |
| Number of Outputs per Chip | 24 |
| Supplier Temperature Grade | Industrial |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 9.3(Typ) |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 30 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5@1.8V|4.3@2.5V|3.4@3.3V |
| Description |
