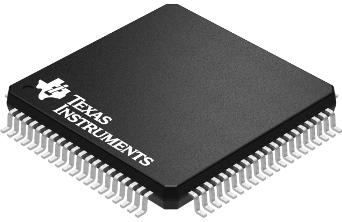

Universal Asynchronous Receiver Transmitter- UARTs TL16C554AIPNR
Texas Instruments
TL16C554AIPNR
--
Drivers and Interfaces
Universal Asynchronous Receiver Transmitter- UARTs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 80 |
| Automotive | No |
| Lead Shape | Gull-wing |
| DMA Support | Yes |
| PCB changed | 80 |
| Part Status | Active |
| Package Width | 12.2(Max) |
| Package Height | 1.45(Max) |
| Package Length | 12.2(Max) |
| Supplier Package | LQFP |
| Maximum Data Rate | 1MBd |
| Receive FIFO (byte) | 16 |
| Transmit FIFO (byte) | 16 |
| Standard Package Name | QFP |
| False Start Bit Detection | Yes |
| Maximum Supply Current (mA) | 50 |
| Number of Channels per Chip | 4 |
| Maximum Power Dissipation (mW) | 500 |
| Automatic Hardware Flow Control | Yes |
| Automatic Software Flow Control | Yes |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.25|3.6 |
| Minimum Operating Supply Voltage (V) | 4.75|3 |
| Typical Operating Supply Voltage (V) | 5|3.3 |
| Transmitter and Receiver FIFO Counter | No |
| Description |
