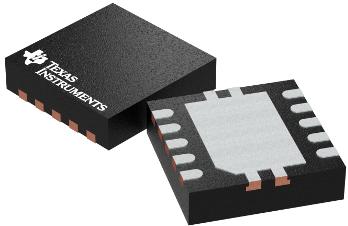

USB Power Switches TPS2561QDRCRQ1
Texas Instruments
TPS2561QDRCRQ1
--
Power Management
USB Power Switches
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Yes |
| Type | USB Power Switch |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 10 |
| Automotive | Yes |
| Lead Shape | No Lead |
| PCB changed | 10 |
| Part Status | Active |
| Enable Logic | Active High |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | VSON EP |
| Current Limit (A) | 0.25 to 2.8 |
| Number of Switches | 2 |
| Standard Package Name | SON |
| Typical Fall Time (us) | 800 |
| Typical Rise Time (us) | 3000 |
| Maximum Input Voltage (V) | 6.5 |
| Minimum Input Voltage (V) | 2.5 |
| Supplier Temperature Grade | Automotive |
| Typical UVLO Threshold (V) | 2.35 |
| Switch On Resistance (mOhm) | 110 |
| Maximum Power Dissipation (mW) | 2403 |
| Typical Turn-On Delay Time (us) | 9000(Max) |
| Typical Turn-Off Delay Time (us) | 6000(Max) |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
