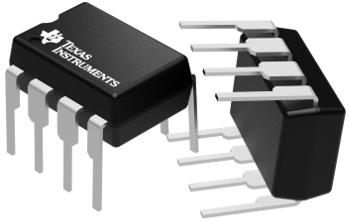

USB Power Switches TPS2046PE4
Texas Instruments
TPS2046PE4
--
Power Management
USB Power Switches
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | USB Power Switch |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 8 |
| Part Status | Obsolete |
| Enable Logic | Active Low |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Current Limit (A) | 0.44 |
| Number of Switches | 2 |
| Standard Package Name | DIP |
| Typical Fall Time (us) | 4400 |
| Typical Rise Time (us) | 3000 |
| Maximum Input Voltage (V) | 5.5 |
| Minimum Input Voltage (V) | 2.7 |
| Supplier Temperature Grade | Industrial |
| Typical UVLO Threshold (V) | 2.5(Max) |
| Switch On Resistance (mOhm) | 85 |
| Maximum Power Dissipation (mW) | 1175 |
| Typical Turn-On Delay Time (us) | 3000(Max) |
| Typical Turn-Off Delay Time (us) | 40000(Max) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
