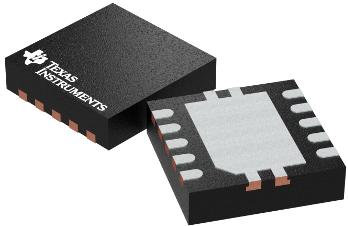

USB Power Switches TPS2003CDRCR
Texas Instruments
TPS2003CDRCR
--
Power Management
USB Power Switches
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | USB Power Distribution Switch |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 10 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 10 |
| Part Status | Active |
| Enable Logic | Active High |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | VSON EP |
| Current Limit (A) | 3.15 |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| Supply Current (mA) | 0.1 |
| Standard Package Name | SON |
| Typical Fall Time (us) | 470 |
| Typical Rise Time (us) | 820 |
| Output Voltage Range (V) | -0.3 to 6 |
| Maximum Input Voltage (V) | 5.5 |
| Minimum Input Voltage (V) | 4.5 |
| Minimum Output Current (A) | 2(Max) |
| Typical UVLO Threshold (V) | 4(Max) |
| Switch On Resistance (mOhm) | 70 |
| Typical Turn-On Delay Time (us) | 1900 |
| Typical Turn-Off Delay Time (us) | 2600 |
| Operating Supply Voltage Range (V) | 4.5 to 5.5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
