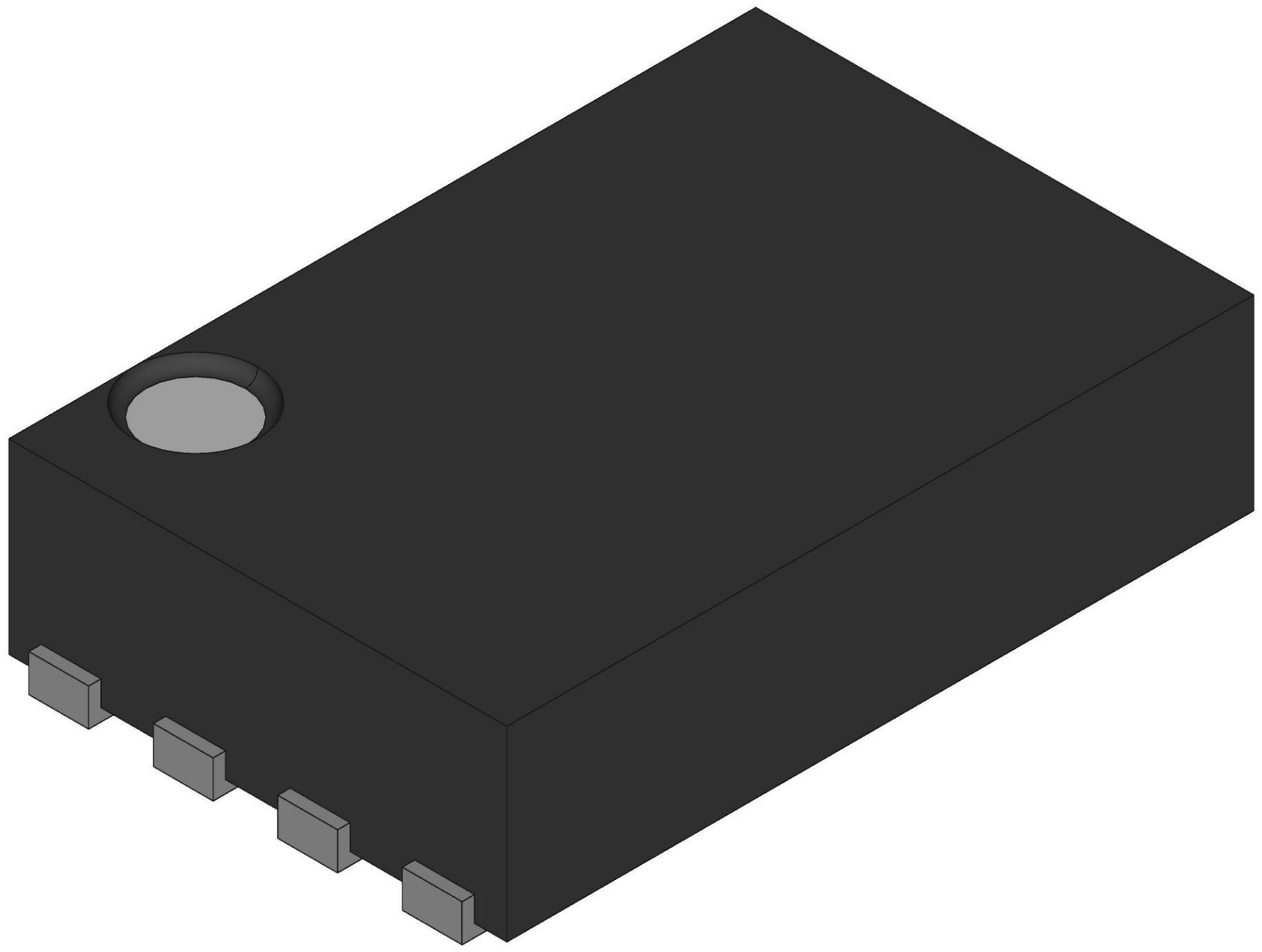

USB Power Switches PI5PD2557ZCEX
Diodes Incorporated
PI5PD2557ZCEX
--
Power Management
USB Power Switches
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | High Side Switch |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Obsolete |
| Enable Logic | Active High |
| Package Width | 3 |
| Package Height | 0.75(Max) |
| Package Length | 3 |
| Supplier Package | TDFN EP |
| Current Limit (A) | 0.5 to 5 |
| Number of Switches | 2 |
| Typical Fall Time (us) | 500 |
| Typical Rise Time (us) | 2000 |
| Maximum Input Voltage (V) | 5.5 |
| Minimum Input Voltage (V) | 2.5 |
| Typical UVLO Threshold (V) | 2.35 |
| Switch On Resistance (mOhm) | 22 |
| Maximum Power Dissipation (mW) | 2400 |
| Typical Turn-On Delay Time (us) | 5000(Max) |
| Typical Turn-Off Delay Time (us) | 2000(Max) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
