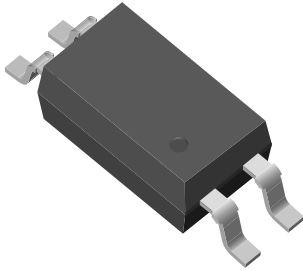

Transistor and Photovoltaic Output Photocouplers VOS617B-X001T
Vishay
VOS617B-X001T
--
Optoelectronics
Transistor and Photovoltaic Output Photocouplers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Standard | UL|cUL|FIMKO|VDE|CQC |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 4 |
| Automotive | No |
| PCB changed | 4 |
| Part Status | Unconfirmed |
| Output Device | Transistor |
| Package Width | 4.4 |
| Package Height | 2 |
| Package Length | 2.85(Max) |
| Supplier Package | SSOP |
| Typical Fall Time (us) | 3 |
| Typical Rise Time (us) | 3 |
| Maximum Forward Voltage (V) | 1.5 |
| Maximum Reverse Voltage (V) | 6 |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage (V) | 1.18 |
| Maximum Forward Current (mA) | 60 |
| Maximum Collector Current (mA) | 50 |
| Maximum Power Dissipation (mW) | 100 |
| Minimum Isolation Voltage (Vrms) | 3750 |
| Maximum Current Transfer Ratio (%) | 600 |
| Minimum Current Transfer Ratio (%) | 50 |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Collector-Emitter Voltage (V) | 80 |
| Current Transfer Ratio Test Current (mA) | 5 |
| Maximum Collector-Emitter Saturation Voltage (mV) | 400 |
| Description |
