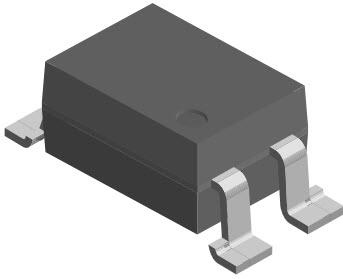

Transistor and Photovoltaic Output Photocouplers VO615A-7X007T
Vishay
VO615A-7X007T
--
Optoelectronics
Transistor and Photovoltaic Output Photocouplers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Standard | BSI|CQC|CSA|cUL|FIMKO|UL |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 4 |
| Automotive | No |
| Input Type | DC |
| Lead Shape | Gull-wing |
| Output Type | DC |
| PCB changed | 4 |
| Part Status | Active |
| Output Device | Transistor |
| Package Width | 6.5 |
| Package Height | 3.4 |
| Package Length | 4.58 |
| Supplier Package | PDIP SMD |
| Standard Package Name | DIP |
| Typical Fall Time (us) | 4.7 |
| Typical Rise Time (us) | 3 |
| Maximum Forward Voltage (V) | 1.6 |
| Maximum Reverse Voltage (V) | 6 |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage (V) | 1.43 |
| Maximum Forward Current (mA) | 60 |
| Maximum Collector Current (mA) | 50 |
| Maximum Power Dissipation (mW) | 70 |
| Minimum Isolation Voltage (Vrms) | 5000 |
| Maximum Current Transfer Ratio (%) | 160 |
| Minimum Current Transfer Ratio (%) | 80 |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Collector-Emitter Voltage (V) | 70 |
| Current Transfer Ratio Test Current (mA) | 5 |
| Maximum Collector-Emitter Saturation Voltage (mV) | 300 |
| Description |
