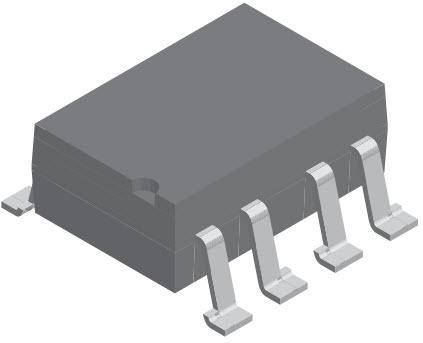

Transistor and Photovoltaic Output Photocouplers ILD74-X009T
Vishay
ILD74-X009T
--
Optoelectronics
Transistor and Photovoltaic Output Photocouplers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Standard | BSI|CSA|FIMKO|UL |
| ECCN (US) | EAR99 |
| Pin Count | 8 |
| Automotive | No |
| Input Type | DC |
| Lead Shape | Gull-wing |
| Output Type | DC |
| PCB changed | 8 |
| Part Status | Active |
| Output Device | Transistor |
| Package Width | 6.81(Max) |
| Package Height | 3.81(Max) |
| Package Length | 9.91(Max) |
| Supplier Package | PDIP SMD |
| Standard Package Name | DIP |
| Maximum Forward Voltage (V) | 1.5 |
| Number of Channels per Chip | 2 |
| Typical Forward Voltage (V) | 1.3 |
| Maximum Forward Current (mA) | 60 |
| Maximum Power Dissipation (mW) | 400 |
| Minimum Isolation Voltage (Vrms) | 5300 |
| Maximum Current Transfer Ratio (%) | 35(Typ) |
| Minimum Current Transfer Ratio (%) | 12.5 |
| Maximum Operating Temperature (°C) | 100 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Collector-Emitter Voltage (V) | 20 |
| Current Transfer Ratio Test Current (mA) | 16 |
| Maximum Collector-Emitter Saturation Voltage (mV) | 500 |
| Description |
