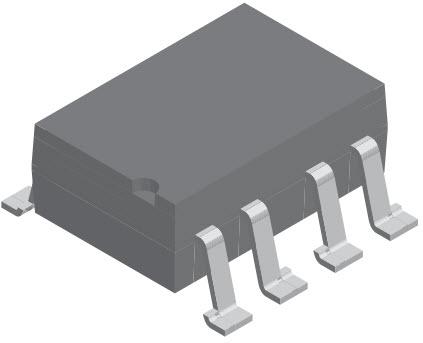

Transistor and Photovoltaic Output Photocouplers 6N136-X007
Vishay
6N136-X007
--
Optoelectronics
Transistor and Photovoltaic Output Photocouplers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Standard | CSA|UL |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Input Type | DC |
| Lead Shape | Gull-wing |
| Output Type | DC |
| PCB changed | 8 |
| Part Status | Active |
| Output Device | Transistor With Base |
| Package Width | 6.81(Max) |
| Package Height | 3.81(Max) |
| Package Length | 9.91(Max) |
| Supplier Package | PDIP SMD |
| Maximum Data Rate | 1MBd(Typ) |
| Standard Package Name | DIP |
| Maximum Forward Voltage (V) | 1.9 |
| Maximum Reverse Voltage (V) | 5 |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage (V) | 1.6 |
| Maximum Forward Current (mA) | 25 |
| Maximum Collector Current (mA) | 8 |
| Maximum Power Dissipation (mW) | 100 |
| Minimum Isolation Voltage (Vrms) | 5300 |
| Maximum Current Transfer Ratio (%) | 35(Typ) |
| Minimum Current Transfer Ratio (%) | 19 |
| Maximum Operating Temperature (°C) | 100 |
| Minimum Operating Temperature (°C) | -55 |
| Current Transfer Ratio Test Current (mA) | 16 |
| Description |
