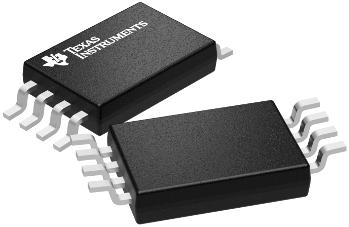

Timers NE555PW
Texas Instruments
NE555PW
--
Clock and Timing
Timers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| Type | Standard |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 4.5(Max) |
| Package Height | 1.05(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | TSSOP |
| Output Logic Level | TTL |
| Standard Package Name | SOP |
| Number of Internal Timers | 1 |
| Maximum Quiescent Current (mA) | 15 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 16 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5|9|12|15 |
| Maximum Low Level Output Current (mA) | 200 |
| Maximum High Level Output Current (mA) | -200 |
| Description |
