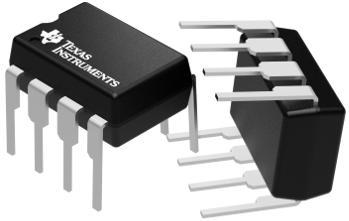

Timers NE555P
Texas Instruments
NE555P
--
Clock and Timing
Timers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| Type | Standard |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Output Logic Level | TTL |
| Standard Package Name | DIP |
| Number of Internal Timers | 1 |
| Maximum Quiescent Current (mA) | 15 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 16 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 15|12|9|5 |
| Maximum Low Level Output Current (mA) | 200 |
| Maximum High Level Output Current (mA) | -200 |
| Description |
