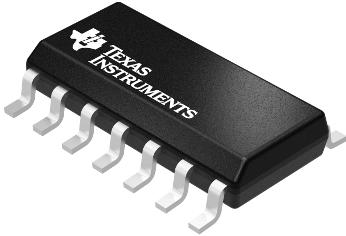

Timers LM556CMX
Texas Instruments
LM556CMX
--
Clock and Timing
Timers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| Type | Standard |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | Obsolete |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SOIC |
| Output Logic Level | TTL |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Number of Internal Timers | 2 |
| Maximum Supply Current (mA) | 14 |
| Maximum Power Dissipation (mW) | 410 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 16 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 15|9|5|12 |
| Maximum Low Level Output Current (mA) | 200 |
| Maximum High Level Output Current (mA) | -200 |
| Description |
