Specification
| Product Attribute | Attribute Value |
| HTS | 8541.10.00.80 |
| PPAP | Yes |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | Yes |
| Lead Shape | J-Lead |
| PCB changed | 2 |
| Configuration | Single |
| Package Width | 3.94(Max) |
| Direction Type | Uni-Directional |
| Package Height | 2.24(Max) |
| Package Length | 4.57(Max) |

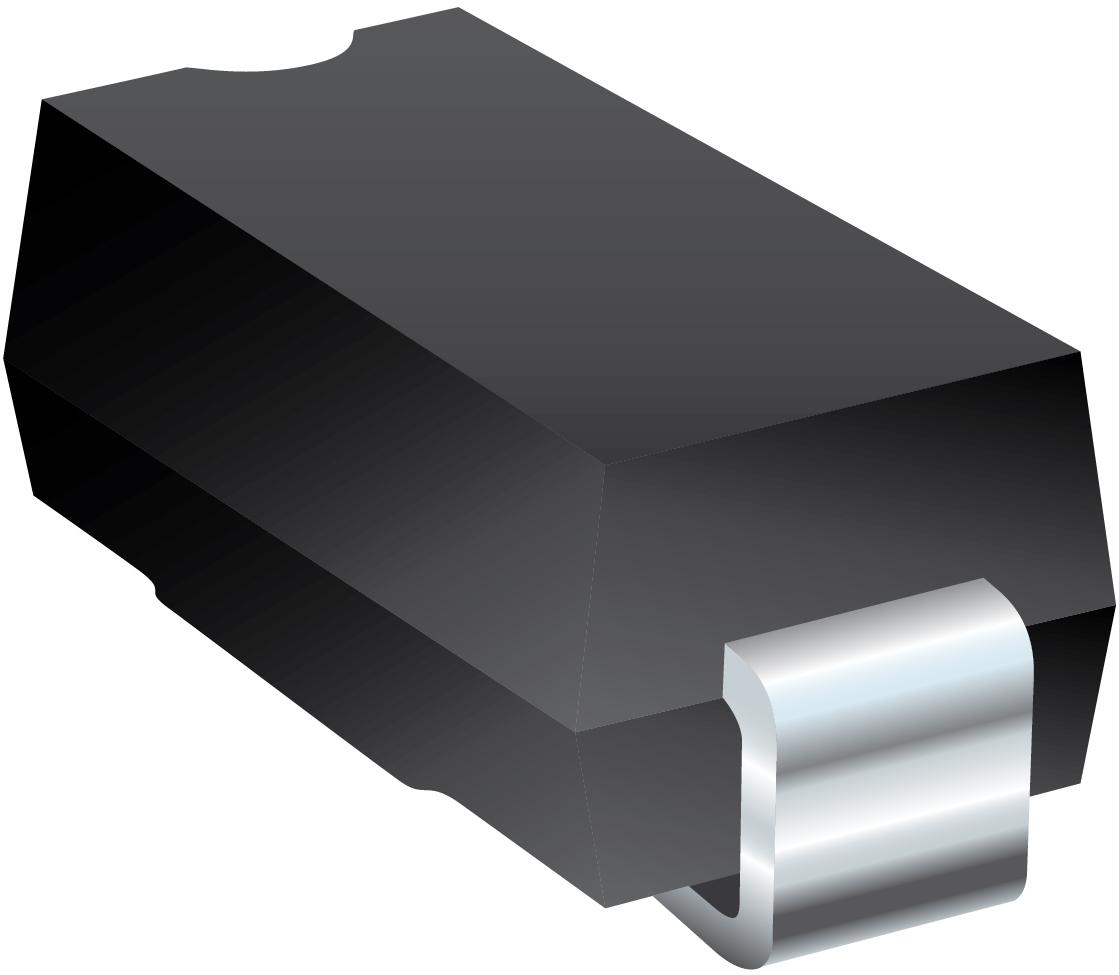

| Supplier Package | SMB |
| Test Current (mA) | 1 |
| Standard Package Name | DO-214-AA |
| SVHC Exceeds Threshold | Yes |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 1 |
| Maximum Clamping Voltage (V) | 189.8 |
| Minimum Breakdown Voltage (V) | 100 |
| Maximum Peak Pulse Current (A) | 20.5 |
| Peak Forward Surge Current (A) | 100 |
| Peak Pulse Power Dissipation (W) | 600(Min) |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Reverse Leakage Current (uA) | 1 |
| Maximum Reverse Stand-Off Voltage (V) | 90 |
| Description |
