Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | Unknown |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | Yes |
| PCB changed | 1 |
| Part Status | Active |
| Configuration | Single |
| Package Width | 8.5 |
| Direction Type | Bi-Directional |
| Package Length | 13.5 |

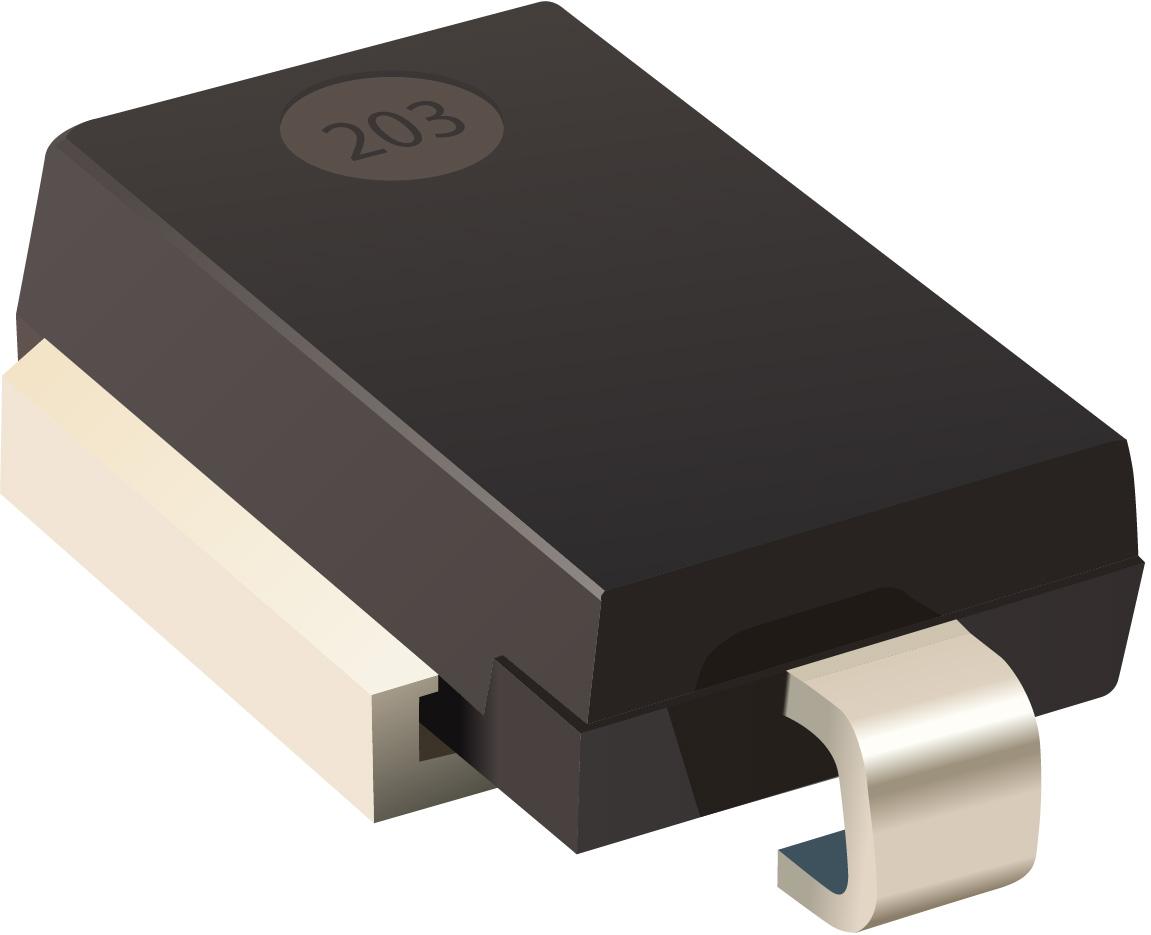

| Supplier Package | DO-218 |
| Test Current (mA) | 5 |
| SVHC Exceeds Threshold | Yes |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 1 |
| Maximum Clamping Voltage (V) | 55 |
| Minimum Breakdown Voltage (V) | 36.69 |
| Maximum Peak Pulse Current (A) | 272.7 |
| Maximum Power Dissipation (mW) | 8000 |
| Peak Pulse Power Dissipation (W) | 15000 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Reverse Leakage Current (uA) | 10 |
| Maximum Reverse Stand-Off Voltage (V) | 36 |
| Description |
