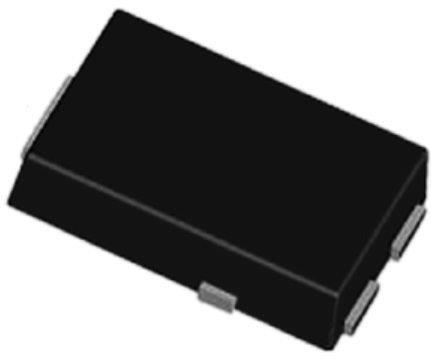

TVS Diode SMAJ530HE3_A/I
Vishay
SMAJ530HE3_A/I
--
Diodes, Transistors and Thyristors
TVS Diode
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | Yes |
| Lead Shape | J-Lead |
| PCB changed | 2 |
| Part Status | Obsolete |
| Configuration | Single |
| Package Width | 2.79(Max) |
| Direction Type | Uni-Directional |
| Package Height | 2.09(Max) |
| Package Length | 4.5(Max) |
| Supplier Package | SMA |
| Test Current (mA) | 0.1 |
| Standard Package Name | DO-214-AC |
| SVHC Exceeds Threshold | Yes |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 1 |
| Maximum Clamping Voltage (V) | 760 |
| Minimum Breakdown Voltage (V) | 530 |
| Maximum Peak Pulse Current (A) | 0.4 |
| Peak Pulse Power Dissipation (W) | 300 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Reverse Leakage Current (uA) | 1 |
| Maximum Reverse Stand-Off Voltage (V) | 477 |
| Description |
