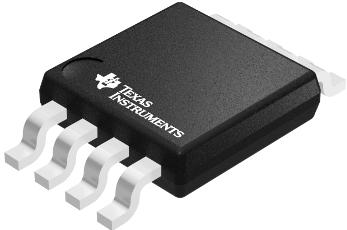

Supervisory Circuits TPS3617-50DGKR
Texas Instruments
TPS3617-50DGKR
--
Power Management
Supervisory Circuits
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| Type | Power Supply Monitor |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Active |
| Manual Reset | No |
| Output Driver | Active Low/Push-Pull |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Watchdog Timer | Yes |
| Supplier Package | VSSOP |
| Chip Enable Signals | No |
| Power Fail Detection | Yes |
| Monitored Voltage (V) | 5 |
| Number of Supervisors | 1 |
| Standard Package Name | SOP |
| Battery Backup Switching | Yes |
| Supplier Temperature Grade | Industrial |
| Maximum Supply Current (uA) | 40 |
| Maximum Power Dissipation (mW) | 470 |
| Maximum Reset Active Time (ms) | 140 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Reset Threshold Voltage (V) | 4.46 |
| Typical Reset Threshold Voltage (V) | 4.55 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
