Special Purpose Amplifiers NE5517ANG
onsemi
NE5517ANG
--
Amplifier
Special Purpose Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Transconductance Amplifier |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 7.11(Max) |
| Package Height | 4.95(Max) |
| Package Length | 19.69(Max) |

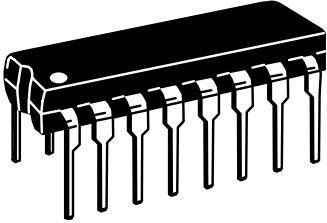

| Supplier Package | PDIP |
| Minimum CMRR (dB) | 80 |
| Power Supply Type | Single|Dual |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 75 to 85 |
| Maximum Supply Current (mA) | 4@±15V |
| Number of Channels per Chip | 2 |
| Number of Elements per Chip | 2 |
| Typical Output Current (mA) | 0.5@±15V |
| Maximum Power Dissipation (mW) | 1500 |
| Maximum Dual Supply Voltage (V) | ±22 |
| Maximum Input Bias Current (uA) | 5@±15V |
| Maximum Input Resistance (MOhm) | 0.026(Typ)@±15V |
| Maximum Supply Voltage Range (V) | 30 to 50 |
| Maximum Input Offset Voltage (mV) | 2@±15V |
| Maximum Single Supply Voltage (V) | 44 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | ±22|44 |
| Description |
