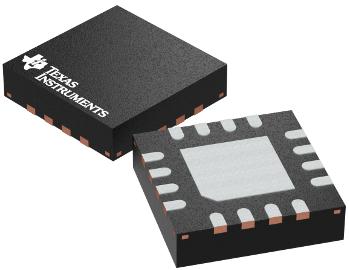

Special Purpose Amplifiers LOG114AIRGVRG4
Texas Instruments
LOG114AIRGVRG4
--
Amplifier
Special Purpose Amplifiers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Logarithmic Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 16 |
| Part Status | Active |
| Package Width | 4.15(Max) |
| Package Height | 0.95(Max) |
| Package Length | 4.15(Max) |
| Supplier Package | VQFN EP |
| Minimum CMRR (dB) | 70(Typ) |
| Minimum PSRR (dB) | 150.46(Typ) |
| Power Supply Type | Single|Dual |
| Standard Package Name | QFN |
| Minimum CMRR Range (dB) | 60 to 75 |
| Maximum Voltage Gain (dB) | 100(Typ) |
| Number of Channels per Chip | 5 |
| Number of Elements per Chip | 5 |
| Maximum Dual Supply Voltage (V) | ±5.5 |
| Maximum Input Bias Current (uA) | 1(Typ)@5V |
| Maximum Voltage Gain Range (dB) | 100 to 125 |
| Minimum Dual Supply Voltage (V) | ±2.4 |
| Typical Dual Supply Voltage (V) | ±5 |
| Maximum Supply Voltage Range (V) | 10 to 15 |
| Maximum Input Offset Voltage (mV) | 7@5V |
| Maximum Single Supply Voltage (V) | 11 |
| Minimum Single Supply Voltage (V) | 4.8 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | ±5.5|11 |
| Typical Gain Bandwidth Product (MHz) | 50 |
| Description |
