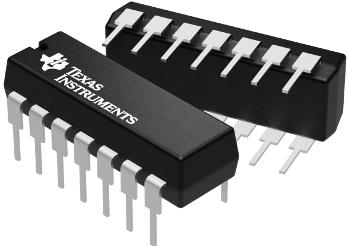

Special Purpose Amplifiers INA2134PAG4
Texas Instruments
INA2134PAG4
--
Amplifier
Special Purpose Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Differential Amplifier |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 14 |
| Part Status | Unconfirmed |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Minimum CMRR (dB) | 74 |
| Power Supply Type | Dual|Single |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 60 to 75 |
| Maximum Voltage Gain (dB) | 0(Typ) |
| Supplier Temperature Grade | Extended Industrial |
| Number of Channels per Chip | 2 |
| Number of Elements per Chip | 2 |
| Typical Output Current (mA) | 60@±18V |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Resistance (MOhm) | 0.05(Typ)@±18V |
| Maximum Voltage Gain Range (dB) | <35 |
| Minimum Dual Supply Voltage (V) | ±4 |
| Typical Dual Supply Voltage (V) | ±5|±9|±12|±15 |
| Maximum Supply Voltage Range (V) | 30 to 50 |
| Maximum Input Offset Voltage (mV) | 1@±18V |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Single Supply Voltage (V) | 8 |
| Typical Single Supply Voltage (V) | 9|12|15|18|24|28 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | ±18 |
| Description |
