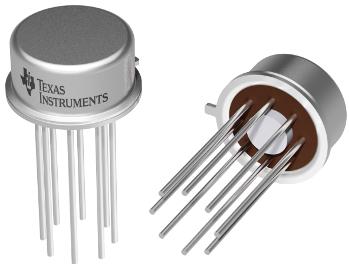

Special Purpose Amplifiers INA117SMQ
Texas Instruments
INA117SMQ
--
Amplifier
Special Purpose Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Differential Amplifier |
| EU RoHS | Compliant |
| Diameter | 9.4(Max) |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | NRND |
| Package Height | 4.7(Max) |
| Supplier Package | TO-99 |
| Minimum CMRR (dB) | 66 |
| Power Supply Type | Dual |
| Minimum CMRR Range (dB) | 60 to 75 |
| Maximum Voltage Gain (dB) | 0(Typ) |
| Number of Channels per Chip | 1 |
| Number of Elements per Chip | 1 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Resistance (MOhm) | 0.8(Typ)@±15V |
| Maximum Voltage Gain Range (dB) | <35 |
| Minimum Dual Supply Voltage (V) | ±5 |
| Typical Dual Supply Voltage (V) | ±15 |
| Maximum Supply Voltage Range (V) | 18 to 20 |
| Maximum Input Offset Voltage (mV) | 1@±15V |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | ±18 |
| Description |
