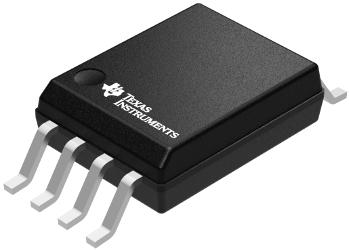

Special Purpose Amplifiers AMC1300DWV
Texas Instruments
AMC1300DWV
--
Amplifier
Special Purpose Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Isolation Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 7.6(Max) |
| Package Height | 2.29 |
| Package Length | 5.95(Max) |
| Supplier Package | SOIC |
| Minimum CMRR (dB) | 98(Typ) |
| Minimum PSRR (dB) | 86(Typ) |
| Power Supply Type | Single |
| Minimum CMRR Range (dB) | 95 to 105 |
| Maximum Supply Current (mA) | 9.8@5.5V/8.1@5.5V@-40C to 125C |
| Number of Channels per Chip | 1 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 98.45(Typ) |
| Maximum Input Bias Current (uA) | 30(Typ)@3.3V/5V |
| Maximum Input Resistance (MOhm) | 0.022@3.3V/5V |
| Maximum Supply Voltage Range (V) | 5 to 7 |
| Maximum Input Offset Voltage (mV) | 2@5.5V |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 4.5 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Description |
