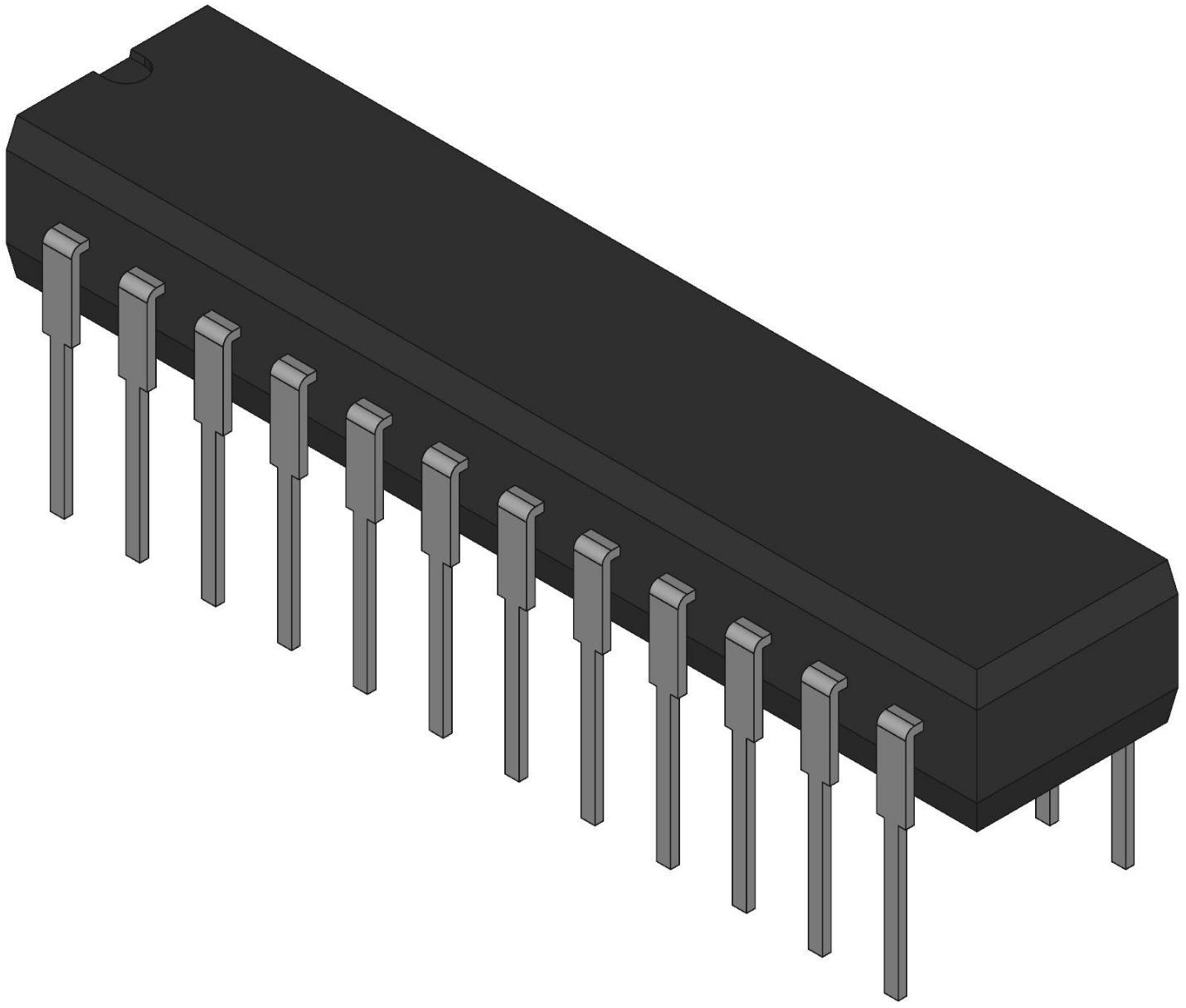

Simple Programmable Logic Devices - SPLDs TIBPAL22V10AMJT
Texas Instruments
TIBPAL22V10AMJT
--
Programmable Devices
Simple Programmable Logic Devices - SPLDs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | 3A001.a.2.c |
| Packaging | Tube |
| Pin Count | 24 |
| Tradename | IMPACT-X |
| Automotive | No |
| Lead Shape | Through Hole |
| Family Name | IMPACT-X |
| PCB changed | 24 |
| Part Status | Obsolete |
| Speed Grade | 30 |
| Package Width | 7.62(Max) |
| Product Terms | 12 |
| Package Height | 5.08(Max) - 0.38(Min) |
| Package Length | 32.51(Max) |
| Programmability | Yes |
| Supplier Package | CDIP |
| Device System Gates | 800 |
| Opr. Frequency (MHz) | 22 |
| Number of Macro Cells | 10 |
| Standard Package Name | DIP |
| In-System Programmability | No |
| Reprogrammability Support | No |
| Maximum Number of User I/Os | 10 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 30 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
