Simple Programmable Logic Devices - SPLDs PAL16R8A-2MJB
Texas Instruments

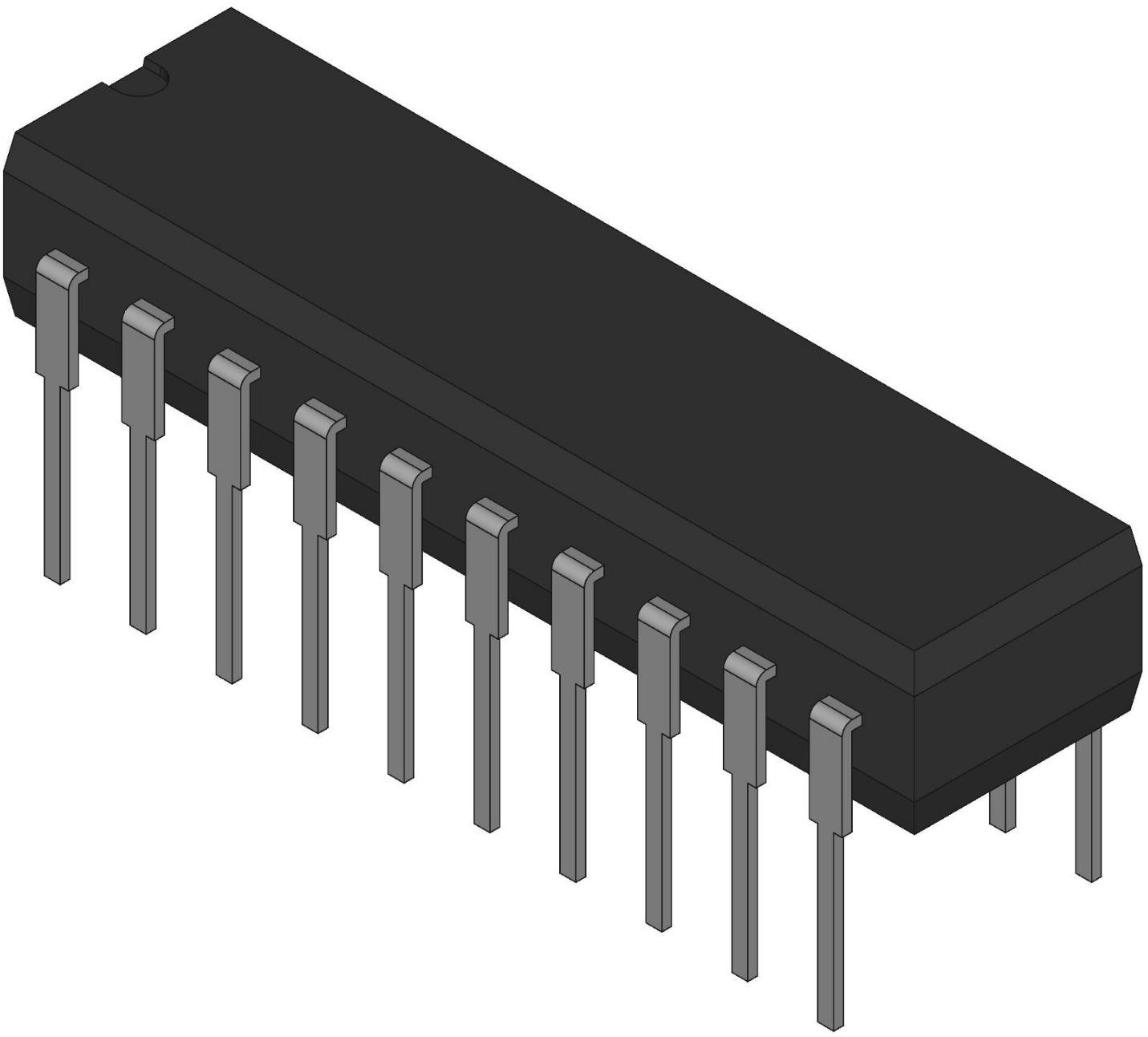

PAL16R8A-2MJB
--
Programmable Devices
Simple Programmable Logic Devices - SPLDs
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | 3A001.a.2.c |
| Pin Count | 20 |
| Tradename | PAL |
| Automotive | No |
| Lead Shape | Through Hole |
| Family Name | PAL |
| PCB changed | 20 |
| Part Status | Obsolete |
| Package Width | 7.62(Max) |
| Product Terms | 8 |
| Package Height | 3.56(Max) |
| Package Length | 26.92(Max) |
| Programmability | Yes |
| Supplier Package | CDIP |
| Opr. Frequency (MHz) | 25 |
| Number of Macro Cells | 8 |
| Standard Package Name | DIP |
| In-System Programmability | No |
| Reprogrammability Support | No |
| Maximum Operating Current (mA) | 90 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
