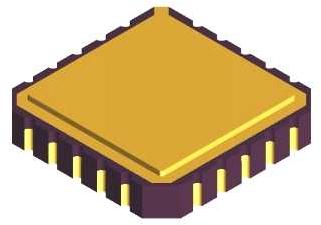

Simple Programmable Logic Devices - SPLDs 5962-85155122A
Texas Instruments
5962-85155122A
--
Programmable Devices
Simple Programmable Logic Devices - SPLDs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | 3A001.a.2.c |
| Packaging | Tube |
| Pin Count | 20 |
| Tradename | PAL |
| Automotive | No |
| Lead Shape | No Lead |
| Family Name | PAL |
| PCB changed | 20 |
| Part Status | NRND |
| Package Width | 9.09(Max) |
| Package Height | 2.03(Max) |
| Package Length | 9.09(Max) |
| Programmability | Yes |
| Supplier Package | CLLCC |
| Opr. Frequency (MHz) | 50 |
| Standard Package Name | LLCC |
| In-System Programmability | No |
| Reprogrammability Support | No |
| Maximum Number of User I/Os | 4 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
