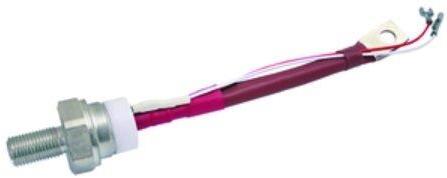

Silicon Controlled Rectifiers - SCRs ST103S04PFL0
Vishay
ST103S04PFL0
--
Diodes, Transistors and Thyristors
Silicon Controlled Rectifiers - SCRs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Stud |
| ECCN (US) | EAR99 |
| Pin Count | 4 |
| Automotive | No |
| Lead Shape | Terminal Stud |
| PCB changed | 4 |
| Part Status | Active |
| Package Width | 25.56(Max) |
| Phase Control | No |
| Package Height | 50(Max) |
| Package Length | 29.5(Max) |
| Supplier Package | TO-94 |
| Standard Package Name | TO-209AC |
| RMS On-State Current (A) | 165 |
| Surge Current Rating (A) | 3150 |
| Peak On-State Voltage (V) | 1.73@300A |
| Maximum Holding Current (mA) | 600 |
| Maximum Gate Trigger Voltage (V) | 3 |
| Maximum Gate Trigger Current (mA) | 200 |
| Rated Average On-State Current (A) | 105 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Repetitive Peak Reverse Voltage (V) | 400 |
| Maximum Gate Peak Inverse Voltage (V) | 5 |
| Repetitive Peak Off-State Current (mA) | 30 |
| Repetitive Peak Forward Blocking Voltage (V) | 400 |
| Maximum Rate of Rise of On-State Current (A/us) | 1000 |
| Maximum Rate of Rise of Off-State Voltage (V/us) | 500 |
| Description |
