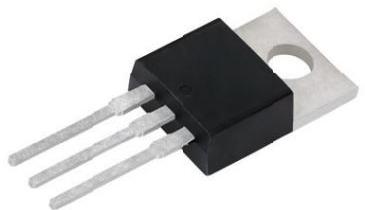

Silicon Controlled Rectifiers - SCRs 25TTS08
Vishay
25TTS08
--
Diodes, Transistors and Thyristors
Silicon Controlled Rectifiers - SCRs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Part Status | Obsolete |
| Package Width | 4.65(Max) |
| Phase Control | No |
| Package Height | 9.02(Max) |
| Package Length | 10.51(Max) |
| Supplier Package | TO-220AB |
| Standard Package Name | TO-220 |
| Surge Current Rating (A) | 350 |
| Peak On-State Voltage (V) | 1.25@16A |
| Maximum Holding Current (mA) | 100 |
| Maximum Gate Trigger Voltage (V) | 2 |
| Maximum Gate Trigger Current (mA) | 45 |
| Rated Average On-State Current (A) | 16 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Repetitive Peak Reverse Voltage (V) | 800 |
| Maximum Gate Peak Inverse Voltage (V) | 10 |
| Repetitive Peak Off-State Current (mA) | 0.5 |
| Repetitive Peak Forward Blocking Voltage (V) | 800 |
| Maximum Rate of Rise of On-State Current (A/us) | 150 |
| Maximum Rate of Rise of Off-State Voltage (V/us) | 500 |
| Description |
