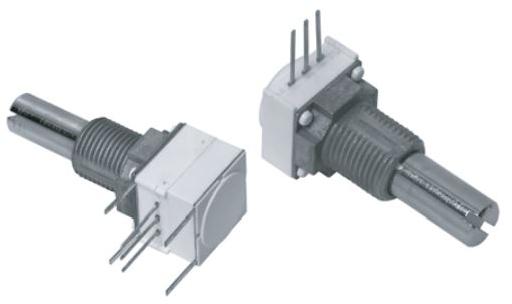

Resistor Trimmers, Potentiometers and Rheostats 14820B0BBSX10103ML
Vishay
14820B0BBSX10103ML
--
Resistors
Resistor Trimmers, Potentiometers and Rheostats
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Potentiometer |
| EU RoHS | Compliant with Exemption |
| Mounting | Panel Mount/Through Hole |
| ECCN (US) | EAR99 |
| Tolerance | 20% |
| Automotive | No |
| Technology | Conductive Plastic |
| Part Status | Active |
| Power Rating (W) | 0.5 (1/2) |
| Termination Style | Pin |
| Number of Elements | 2 |
| Product Depth (mm) | 12.5 |
| Product Weight (g) | 7.65 |
| Product Height (mm) | 13.1 |
| Product Length (mm) | 29.16 |
| Shaft Diameter (mm) | 3.18 |
| Linear or Logarithmic | Log |
| Resistance Value (Ohm) | 10K |
| Number of Turns (Turns) | 1(Elec)|1(Mech) |
| Positions of Adjustment | Side |
| Electrical Rotation (°) | 270 |
| Mechanical Rotation (°) | 300 |
| Maximum Voltage Rating (V) | 350 |
| Temperature Coefficient (ppm/°C) | ±500 |
| Number of Electrical Turns (Turns) | 1 |
| Number of Mechanical Turns (Turns) | 1 |
| Maximum Operating Temperature (°C) | 125 |
| Mechanical Rotational Life (Cycles) | 50000 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
