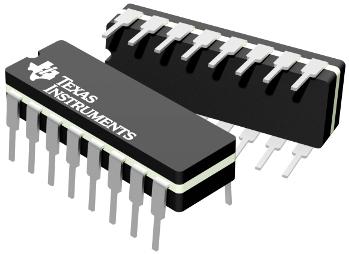

Registers CD54HC40105F3A
Texas Instruments
CD54HC40105F3A
--
Standard and Specialty Logic
Registers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Bus Hold | No |
| Mounting | Through Hole |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| Reset Type | Asynchronous |
| Output Type | 3-State |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | HC |
| Package Width | 7.62(Max) |
| Logic Function | FIFO Register |
| Package Height | 3.56(Max) |
| Package Length | 21.34(Max) |
| Supplier Package | CDIP |
| Input Signal Type | Single-Ended |
| Output Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | DIP |
| Maximum Frequency (MHz) | 32(Min) |
| Number of Element Inputs | 4 |
| Number of Element Outputs | 4 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 4 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (mA) | 0.008 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 3750 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Number of Output Enables per Element | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Maximum Low Level Output Current (mA) | 5.2 |
| Maximum High Level Output Current (mA) | -5.2 |
| Number of Selection Inputs per Element | 0 |
| Description |
