Registers 5962-9682701Q3A
Texas Instruments

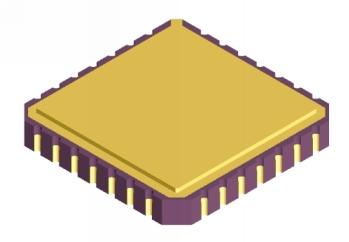

5962-9682701Q3A
--
Standard and Specialty Logic
Registers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | 3-State |
| PCB changed | 28 |
| Part Status | Obsolete |
| Logic Family | FCT |
| Package Width | 11.63(Max) |
| Logic Function | Diagnostic Register |
| Package Height | 2.03(Max) |
| Package Length | 11.63(Max) |
| Triggering Type | Positive-Edge |
| Supplier Package | CLLCC |
| Input Signal Type | Single-Ended |
| Output Signal Type | Single-Ended |
| Process Technology | CMOS |
| Standard Package Name | LLCC |
| Number of Element Inputs | 9 |
| Number of Element Outputs | 9 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 90 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 20 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -3 |
| Number of Selection Inputs per Element | 1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 30@4.5V to 5.5V |
