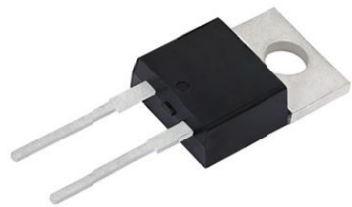

Rectifiers VS-30ETH06-M3
Vishay
VS-30ETH06-M3
--
Diodes, Transistors and Thyristors
Rectifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.10.00.80 |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| Type | Switching Diode |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 2 |
| Automotive | No |
| PCB changed | 2 |
| Part Status | Active |
| Configuration | Single |
| Package Width | 4.65(Max) |
| Package Height | 9.02(Max) |
| Package Length | 10.51(Max) |
| Supplier Package | TO-220AC |
| SVHC Exceeds Threshold | Yes |
| Peak Forward Voltage (V) | 2.6 |
| Peak Reverse Current (uA) | 50 |
| Maximum DC Reverse Voltage (V) | 600 |
| Peak Reverse Recovery Time (ns) | 35 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -65 |
| Peak Reverse Repetitive Voltage (V) | 600 |
| Peak Non-Repetitive Surge Current (A) | 200 |
| Maximum Continuous Forward Current (A) | 30 |
| Description |
