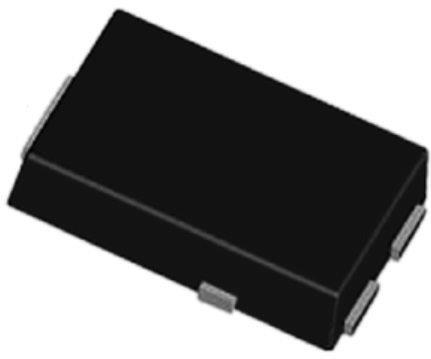

Rectifiers UH4PBCHM3/86A
Vishay
UH4PBCHM3/86A
--
Diodes, Transistors and Thyristors
Rectifiers
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | Unknown |
| SVHC | Yes |
| Type | Switching Diode |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Automotive | Yes |
| PCB changed | 2 |
| Part Status | Obsolete |
| Configuration | Dual Common Cathode |
| Package Width | 6.15(Max) |
| Package Height | 1.2(Max) |
| Package Length | 4.35(Max) |
| Supplier Package | SMPC |
| SVHC Exceeds Threshold | Yes |
| Peak Forward Voltage (V) | 1.05@2A |
| Peak Reverse Current (uA) | 5 |
| Supplier Temperature Grade | Automotive |
| Peak Reverse Recovery Time (ns) | 25 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Peak Reverse Repetitive Voltage (V) | 100 |
| Peak Non-Repetitive Surge Current (A) | 40 |
| Maximum Continuous Forward Current (A) | 4 |
| Description |
