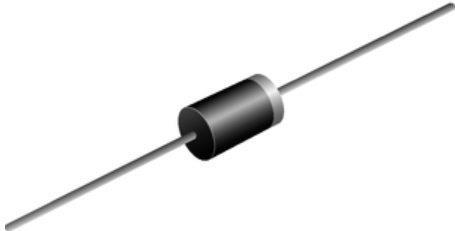

Rectifiers RGP15J-E3/54
Vishay
RGP15J-E3/54
--
Diodes, Transistors and Thyristors
Rectifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.10.00.80 |
| PPAP | No |
| Type | Switching Diode |
| EU RoHS | Compliant with Exemption |
| Diameter | 3.6(Max) |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 2 |
| Part Status | NRND |
| Configuration | Single |
| Package Length | 7.6(Max) |
| Supplier Package | DO-15 |
| Standard Package Name | DO-204-AC |
| Peak Forward Voltage (V) | 1.3 |
| Peak Reverse Current (uA) | 5 |
| Supplier Temperature Grade | Commercial |
| Maximum DC Reverse Voltage (V) | 600 |
| Peak Reverse Recovery Time (ns) | 250 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -65 |
| Peak Reverse Repetitive Voltage (V) | 600 |
| Peak Non-Repetitive Surge Current (A) | 50 |
| Maximum Continuous Forward Current (A) | 1.5@Ta=55C |
| Description |
