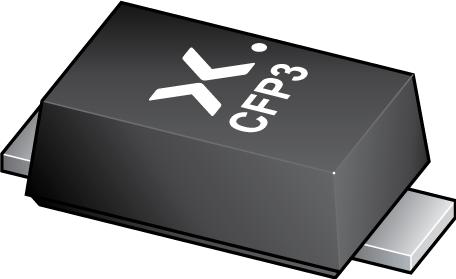

PNS40010ER,115
PNS40010ER,115
Rectifiers PNS40010ER,115
Nexperia
PNS40010ER,115
--
Diodes, Transistors and Thyristors
Rectifiers
Specification
Product AttributeAttribute Value
PPAPUnknown
SVHCYes
TypeSwitching Diode
EU RoHSCompliant with Exemption
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count2
AutomotiveYes
PCB changed2
Part StatusActive
ConfigurationSingle
Package Width1.9(Max)
Package Length2.8(Max)
Supplier PackageSOD-123W
SVHC Exceeds ThresholdYes
Peak Forward Voltage (V)1.1@1A
Peak Reverse Current (uA)1
Supplier Temperature GradeAutomotive
Maximum DC Reverse Voltage (V)400
Maximum Diode Capacitance (pF)20
Maximum Power Dissipation (mW)2300
Maximum RMS Reverse Voltage (V)280
Peak Reverse Recovery Time (ns)1800
Maximum Operating Temperature (°C)175
Minimum Operating Temperature (°C)-55
Peak Reverse Repetitive Voltage (V)400
Peak Non-Repetitive Surge Current (A)32
Maximum Continuous Forward Current (A)1.4
Maximum Junction Ambient Thermal Resistance200K/W
Description
Diode Switching 400V 1.4A Automotive 2-Pin SOD-123W T/R
