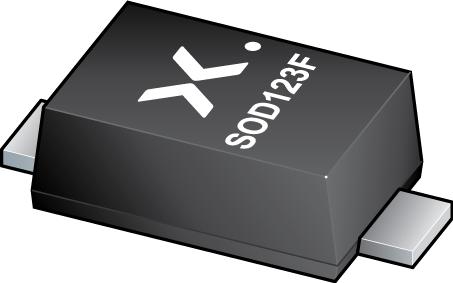

Rectifiers PMEG4010EH,115
Nexperia
PMEG4010EH,115
--
Diodes, Transistors and Thyristors
Rectifiers
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| Type | Schottky Diode |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 2 |
| Automotive | Yes |
| PCB changed | 2 |
| Part Status | Active |
| Configuration | Single |
| Package Width | 1.7(Max) |
| Package Height | 1.2(Max) |
| Package Length | 2.7(Max) |
| Supplier Package | SOD-123F |
| Peak Forward Voltage (V) | 0.64 |
| Peak Reverse Current (uA) | 100 |
| Supplier Temperature Grade | Automotive |
| Maximum DC Reverse Voltage (V) | 40 |
| Maximum Diode Capacitance (pF) | 50 |
| Maximum Power Dissipation (mW) | 830 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -65 |
| Peak Non-Repetitive Surge Current (A) | 9 |
| Maximum Continuous Forward Current (A) | 1 |
| Maximum Junction Ambient Thermal Resistance | 330K/W |
| Description |
