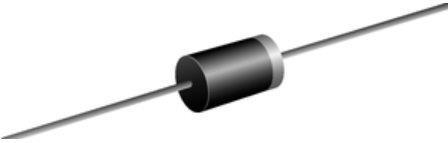

1N5817-E3/4
1N5817-E3/4
Rectifiers 1N5817-E3/4
Vishay
1N5817-E3/4
--
Diodes, Transistors and Thyristors
Rectifiers
1N5817-E3/4.pdf
Specification
Product AttributeAttribute Value
PPAPNo
SVHCYes
TypeSchottky Diode
EU RoHSCompliant with Exemption
Diameter2.7(Max)
MountingThrough Hole
ECCN (US)EAR99
PackagingTape and Reel
Pin Count2
AutomotiveNo
Lead ShapeThrough Hole
PCB changed2
Part StatusObsolete
ConfigurationSingle
Package Length5.21(Max)
Supplier PackageDO-41
Standard Package NameDO-204-AL
SVHC Exceeds ThresholdYes
Peak Forward Voltage (V)0.75@3.1A
Peak Reverse Current (uA)1000
Supplier Temperature GradeCommercial
Maximum DC Reverse Voltage (V)20
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-65
Peak Reverse Repetitive Voltage (V)20
Peak Non-Repetitive Surge Current (A)25
Maximum Continuous Forward Current (A)1
Description
Diode Schottky 20V 1A 2-Pin DO-41 T/R
