Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| Type | Schottky Diode |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 2 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 2 |
| Part Status | Obsolete |
| Configuration | Single |
| Package Width | 4.82(Max) |
| Package Height | 9.02(Max) |
| Package Length | 10.66(Max) |

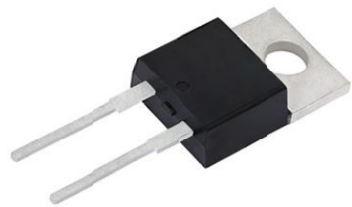

| Supplier Package | TO-220AC |
| Standard Package Name | TO-220 |
| Peak Forward Voltage (V) | 0.72@36A |
| Peak Reverse Current (uA) | 2500 |
| Maximum DC Reverse Voltage (V) | 40 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Peak Reverse Repetitive Voltage (V) | 40 |
| Peak Non-Repetitive Surge Current (A) | 1800 |
| Maximum Continuous Forward Current (A) | 18 |
| Description |
