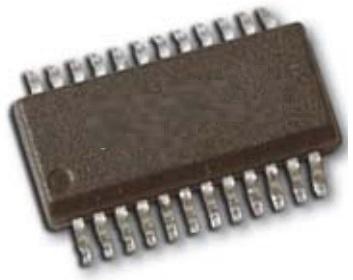

RF Switches HMC253QS24ETR (CUT T&R)
ADI
HMC253QS24ETR (CUT T&R)
--
RF and Microwave
RF Switches
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Technology | GaAs MMIC |
| PCB changed | 24 |
| Part Status | Obsolete |
| Switch Type | SP8T |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | QSOP |
| Number of Switches | 1 |
| Frequency Band (MHz) | 0 to 2500 |
| Switch Configuration | Single SP8T |
| Switching Speed (ns) | 30(Typ) |
| Standard Package Name | SOP |
| Maximum Frequency (MHz) | 2500 |
| High Control Voltage (V) | 2 to 5 |
| Maximum Insertion Loss (dB) | 2.4 |
| Typical Supply Current (mA) | 6 |
| Minimum Isolation Voltage (dB) | 24 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Description |
